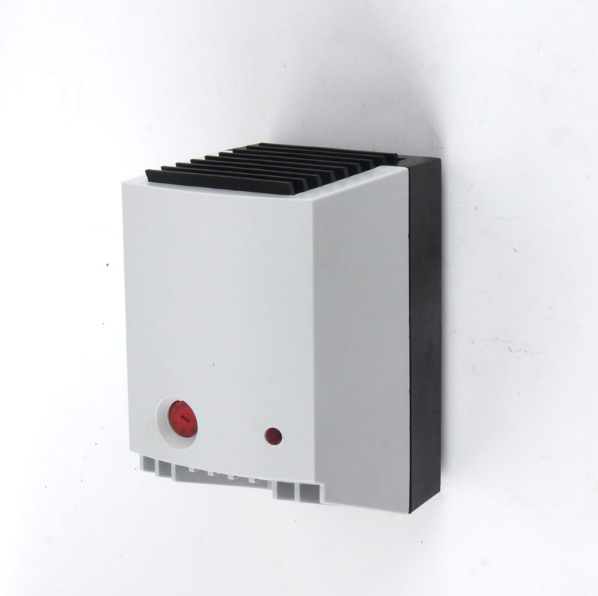

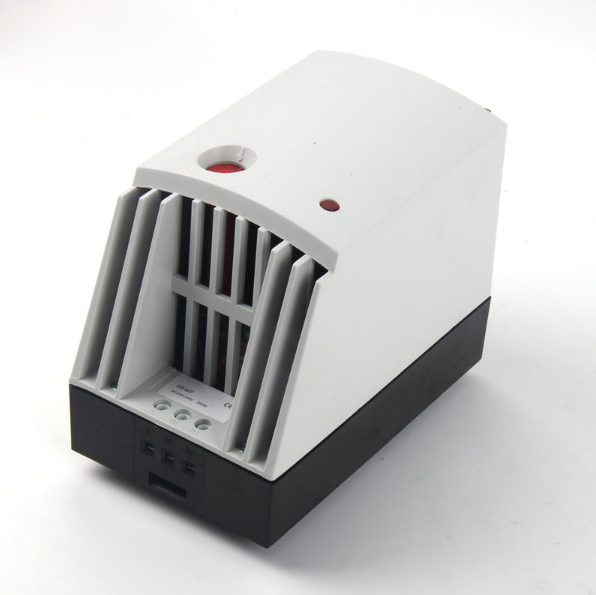

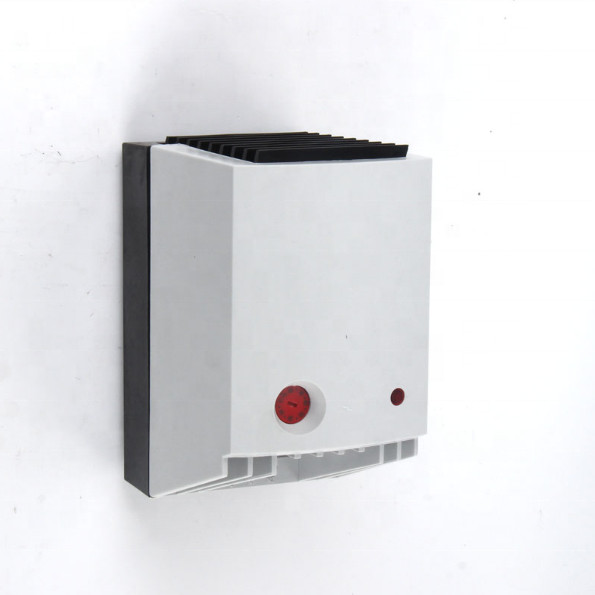

Fan Forced Electric Wall Heater din rail mount CR027 650W

Name: Fan Forced Electric Wall Heater din rail mount CR027 650W
Brand: Kampa
Price: 32.00 USD

China Fan Forced Electric Wall Heater din rail mount CR027 650W wholesale

Applicable Industries : Distribution Cabinet

Condition : New

Type : Semicondutor

Power Source : Electric

Place of Origin : Zhejiang, China

Brand Name : Kampa

Dimension(L*W*H) : 100*128*165mm

Weight : 0.6 approx.1.1kgKG

Voltage : AC220-240V

Warranty : 2 years

Material : Aluminum

Key Selling Points : Easy to Operate

Warranty of core components : 1 Year

Core Components : Other

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

After-sales Service Provided : No overseas service provided, Online support

Heater element : PTC resistor,self regulating and temperature limi

Operating/Storage temperature : -45 to +70 degree (-49 to +158 F)

Casing : plastic according to UL94 V-0,light grey

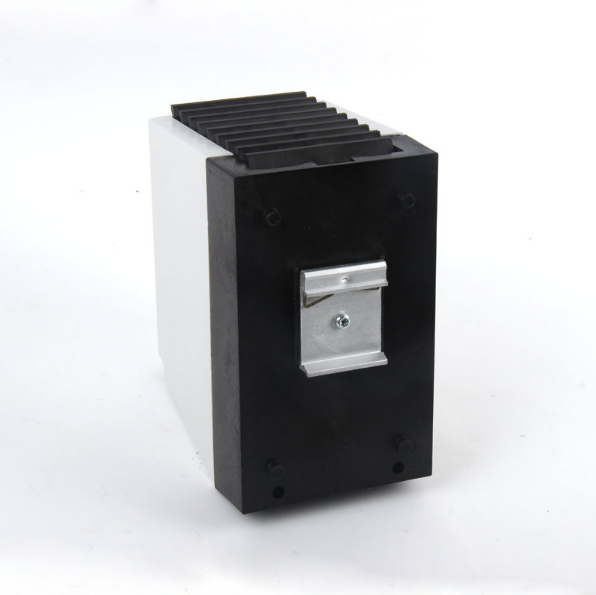

Mounting : clip for 35mm DIN rail, EN 50022

Protection type/Protection class : IP20/II (double insulated)

Certificate : CE

Sample time : 2days

Optical indicator : thermostat control lamp

Fitting position : vertical

After Warranty Service : Online support

Local Service Location : None

Showroom Location : None

Marketing Type : Hot Product 2019

Certification : CE

Packaging Details : heater packing:
standard export carton packing

Port : Ningbo,wenzhou

Supply Ability : 500000 Piece/Pieces per Month

MOQ : 10 Pieces

Price : $32.00 - $40.00/Pieces

Contact Now

Fan Forced Electric Wall Heater din rail mount CR027 650W

Product Description

1. Heating capacity adjusts to ambient temperature

2.Compact
3.Adjustable temperature range
4.Optical indicator
5.Temperature safety cut-out

6.Clip fixing

Semiconductor fan heaters prevent the formation of condensation and

ensure even temperature in switch and control equipment.

The built-in regulator is used to set the desired temperature.

Technical Datas

Heating element	PTC resistor, temperature limiting
Temperature safety cut-out	to protect against overheating in case of fan failure, automatic reset
Axial fan, ball bearing	Airflow see table
	service life 50,000h at 25°C (77°F)
Connection	2-pole clamp 2.5mm⊃2;, clamping torque 0.8Nm max
Casing	plastic according to UL94 V-0, light grey
Optical indicator	thermostat control lamp
Connection	2-pole clamp 2.5mm⊃2;, clamping torque 0.8Nm max.
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical airflow (air outlet up) other fitting positions possible
Dimensions	100 x 128 x 165mm
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Protection type/Protection class	IP20 / II (double insulated)
Approvals	UL File No. E204590
